You send
New request
Torso bay for a research humanoid: quick-release battery on rails with a latch, Jetson-class compute module with its own air path, grommeted cable exits. Sheet aluminium. 10 units.
Sent
For design and engineering firms
Keep the concept and the client. Send us the drawing hours.
Send the concept, the parts list or your CAD. We return checked drawings, flat patterns and a parts list, ready for your review.
Send a requestWe reply with questions and a quote.
Join the waitlistEarly access to the self-serve tool.
We deliver
Understanding the request
- Battery and computer bay in a humanoid torso
- Battery swaps without tools: rails and a latch
- The computer gets its own air path
- Cables leave through grommets on both sides

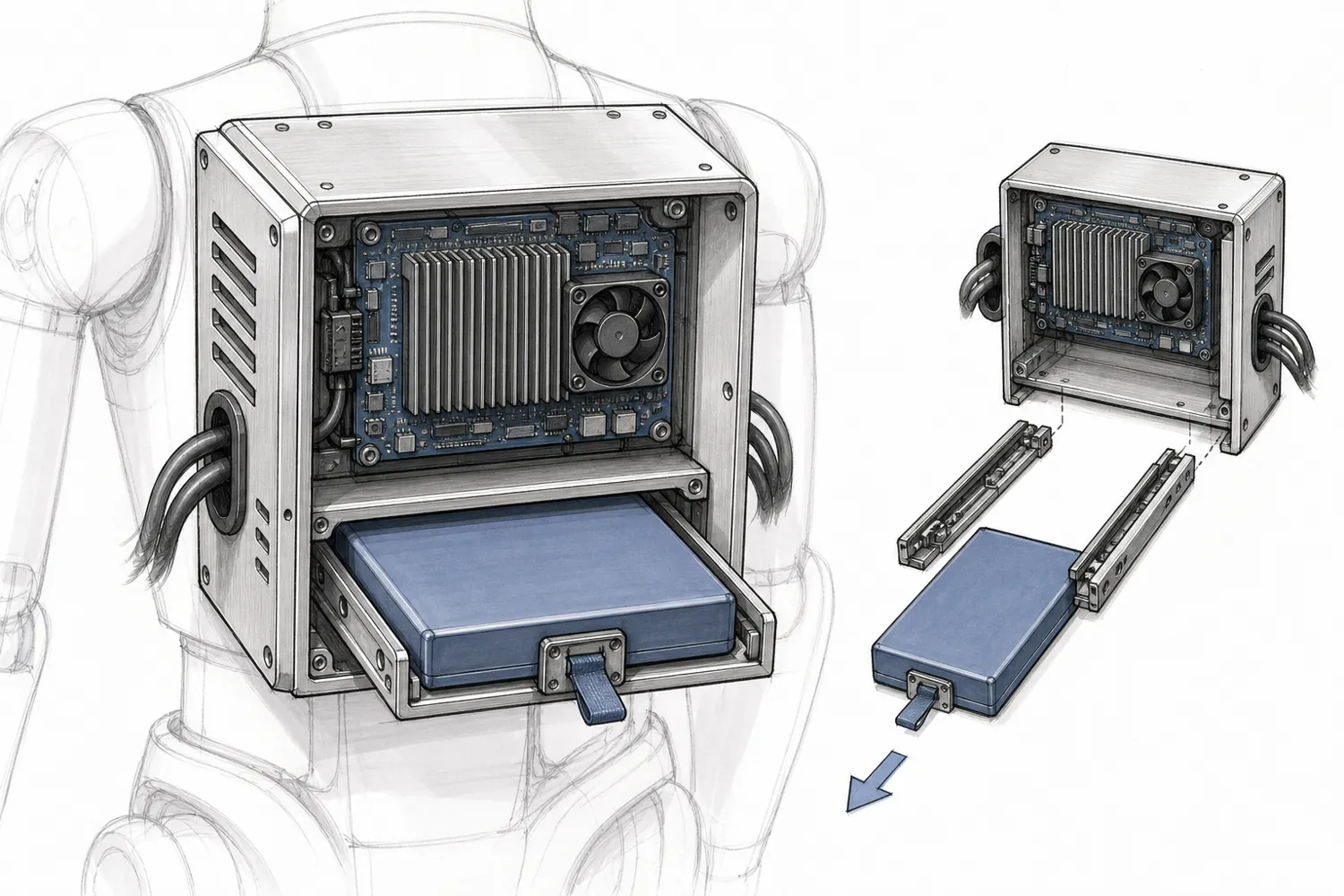

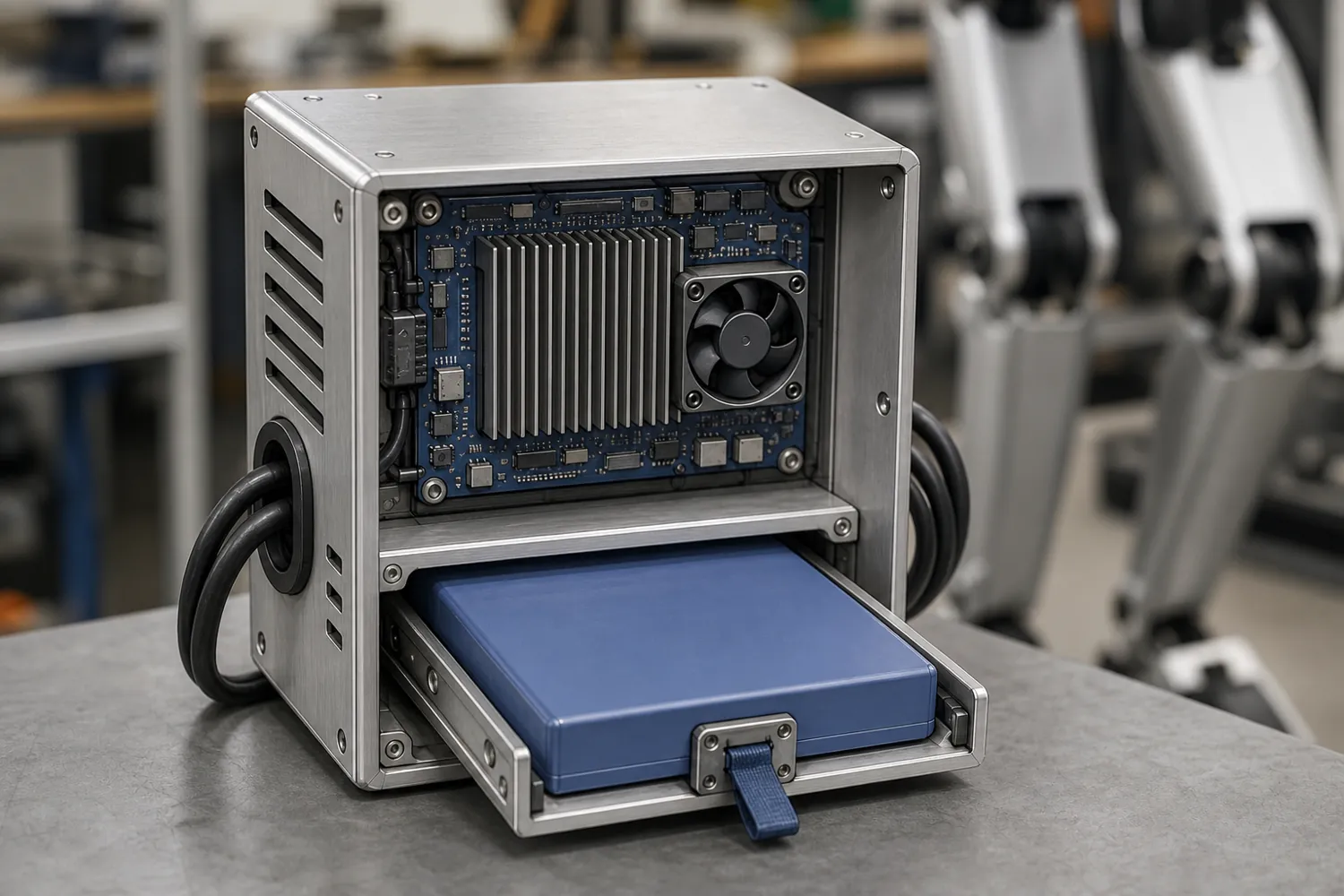

Concept image for your approval
Approved
Standards, parts and process
Standards and rules
- Sheet-metal rules: bend radii, reliefs, PEM nuts
- Bolted interfaces machined from 6061 plate
Parts
- Battery pack · about 120 × 80 × 182 mm
- Jetson Orin Nano dev kit · 100 × 79 × 21 mm
- 40 mm fan
- Rubber grommets, left and right
Process
Sheet aluminium frame with machined plates, 10 units

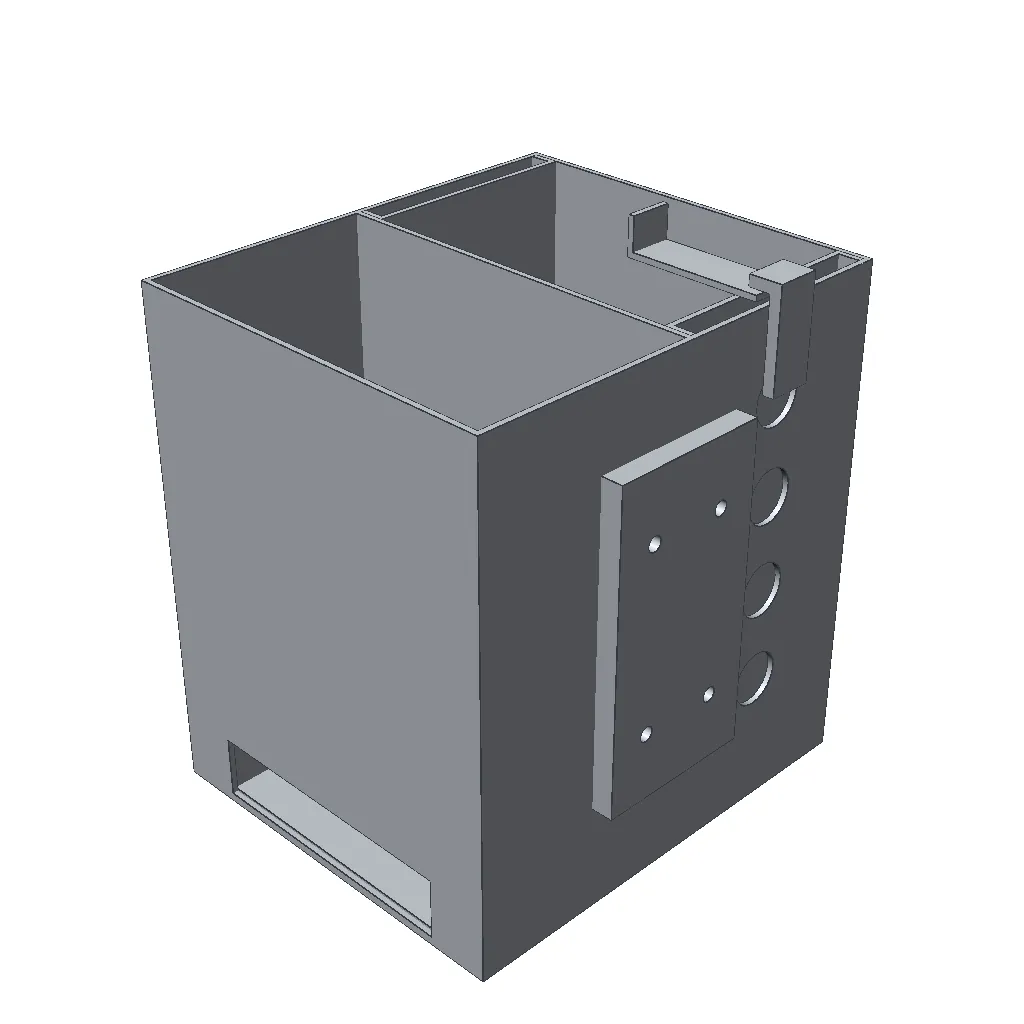

3D model

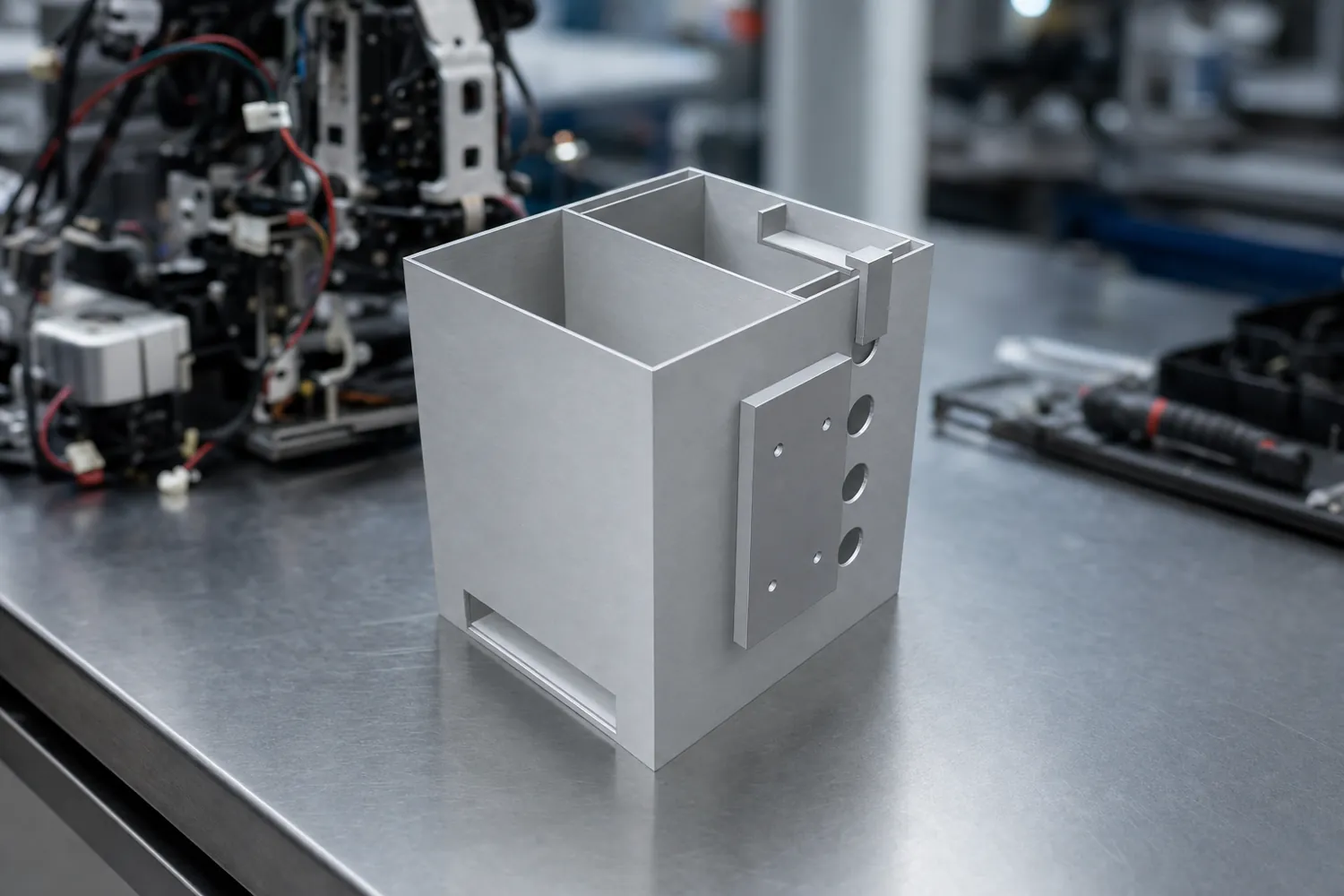

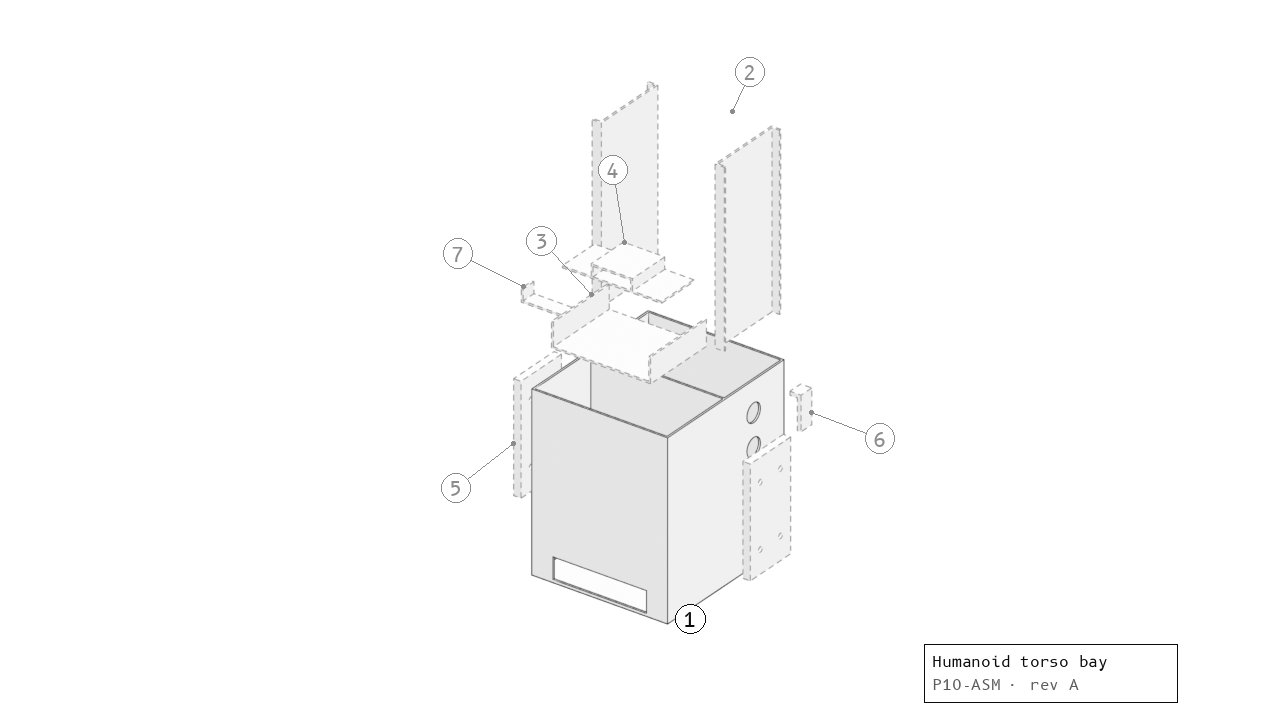

Render, drawings and assembly guide
- 3D model · STEP
- Drawings · PDF, DXF
- Parts list and quote · XLSX
- Rule report · PDF
FilesSTEP · IGES · DXF · PDF · XLSX
DrawingsANSI or ISO
ProcessesInjection moulding · Sheet metal · Extrusion · CNC machining · 3D printing
Send an idea, get drawings.
Brief us the way you would brief an engineer. We send back files your team and your suppliers already open.
You send
- JPG PDF
Your concept: sketches, renders or surfaces
- URL
The electronics and parts that go inside
- STEP
Your CAD as STEP, when you want a design checked or changed
We design, check and document
You get
- STEP IGES
3D parts and assembly
- PDF DXF
Part drawings with standard notation
- DXF
Flat patterns for sheet metal
- PDF
Assembly drawing with balloons and a parts list
- XLSX
Parts list with a quote range
- PDF
Rule report, reviewed by an engineer
What we design
Plastic housings
Box and lid with bosses, snaps, vents and gaskets, for moulding or printing.
Metal chassis
Sheet metal with bends, reliefs, PEM nuts and flat patterns; machined frames and plates.
Extruded enclosures
Extruded aluminium shells and frames, with their end caps.
Mains-powered products get mains and low-voltage zones, cord entry and earthing, designed toward UL, CE or KC.
Your designs stay yours
- We sign your NDA before you send files.
- Your files are used only for your project. We keep geometry only with your written consent.
- Everything we deliver is yours once paid.
Anamor · Anamor Inc. · 8 The Green, Ste R, Dover, DE 19901, USA
Frequently asked questions
How do you handle our client's NDA?
We sign your NDA before you send files. Your files are used only for the project, and we keep geometry only with written consent.
What do I need to send?
A description in plain words: what the product does and where it is used. Add the parts that go inside, with links, and any sketches, photos or drawings you have.
Can you check a design we already have?
Yes. We run the fit, clearance, access and process rules on your STEP files and send the report with a list of fixes. No redesign unless you ask for one.
Can you work from old drawings, scans or parts?
Yes. We model from a 2D drawing, turn a scan or STL into editable CAD, or rebuild an old part. It passes when it matches the source within the stated tolerance.
Which file formats and drawing standards do you use?
STEP and IGES, which open in SolidWorks, Creo, NX, Inventor and Fusion; drawings as PDF and DXF. US projects get ANSI sheets with inches alongside millimetres; others get ISO sheets.
Which processes do you design for?
Injection moulding, 3D printing, CNC machining, sheet metal and extrusion. Each part is checked against the rules of the process that will make it.
How is a project priced?
Every project is quoted after we read the request. The questions and the quote are free.
Who reviews the work?
An engineer reviews every package before it reaches you. A change to what you approved is confirmed by a person.
What is the printed prototype for?
To check fit with your real boards and parts before tooling. For sheet-metal and extruded designs it is a printed stand-in of the same shape.
Can we use the tool ourselves?
Not yet. Join the waitlist for early access; until then we run it for you.
Send the request in your own words.
We reply with what we understood, the questions that change the design, and a quote.
