Compact HEPA air purifier

Tool-free filter changes, and no fingers near the fan.

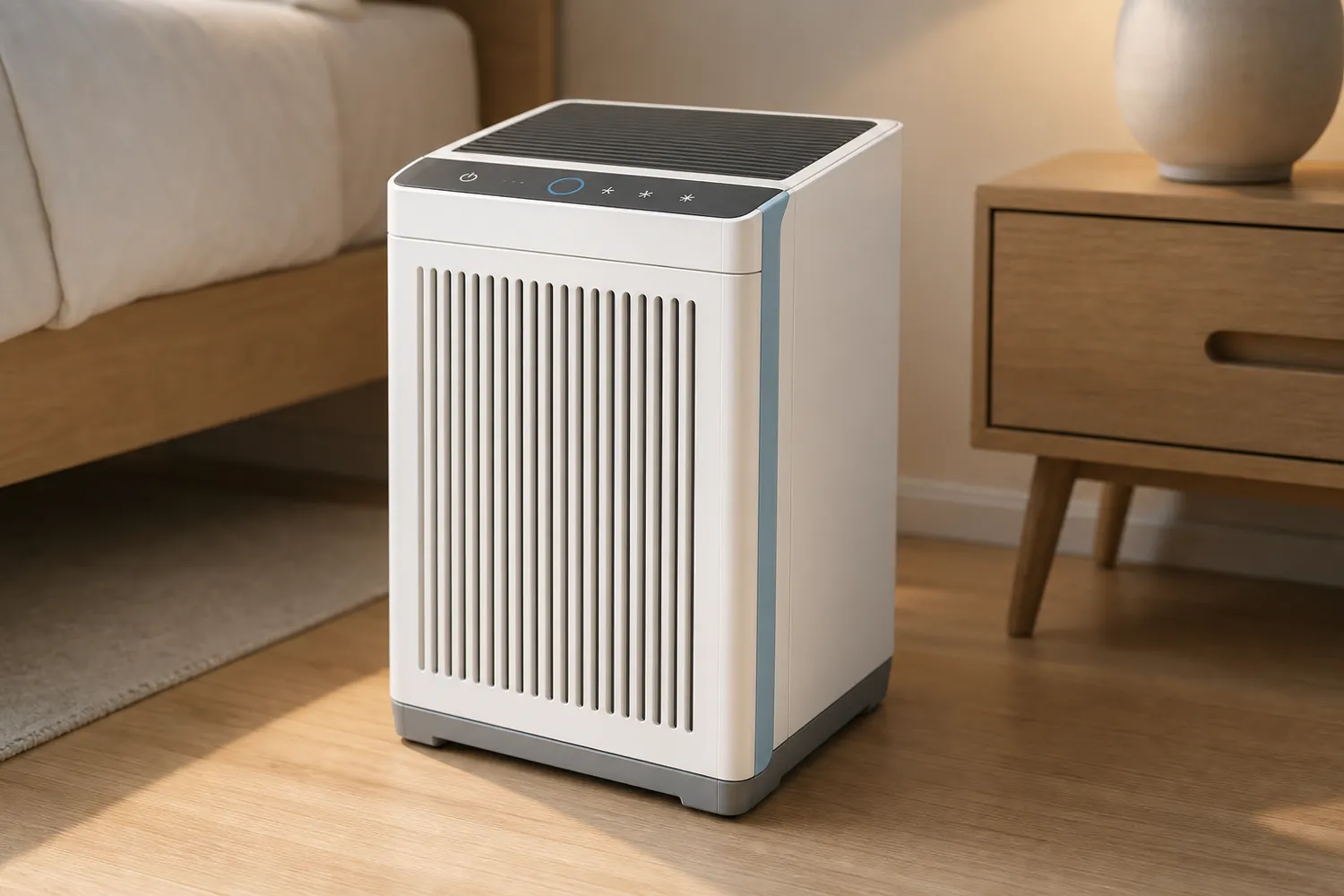

White compact air purifier on a light oak floor beside a bed
Process
Printed prototype → Injection
Quantity
500
Region
EU 230 V
Environment
Bedroom
Concept image, not to scale

Example brief · not client workWe wrote this brief ourselves; it is not client work. The design below is a hand-built CAD sample drawn to the concept sketch: it is not our engine's output, and it has not been built or tested physically.

The request, as a client would send it

We're a small Berlin startup making a quiet bedroom air purifier for the EU market. The fan and electronics run in a cardboard mock-up; we need a real enclosure for 500 units. - A true HEPA H13 cartridge, 200 x 200 x 40 mm, that users replace every 6 to 12 months from the front, without tools. - A 120 x 120 x 25 mm DC fan (currently the Sunon EEC0251B3). - A 70 x 50 mm driver board with the 230 V to 12 V supply, and a capacitive touch panel on top (its board is 90 x 25 mm). Air comes in through the front, passes the filter and leaves through the top grille. Children sleep in these rooms, so fingers must not be able to reach the fan through the grille. For size, IKEA's UPPÅTVIND is the footprint people are used to, but it uses an EPA filter; ours needs a real HEPA cartridge and will be deeper. Please don't make it look like theirs. Our sketch is attached. We'll go for CE marking later, so please keep the IEC 60335 rules in mind.

Attached by the client

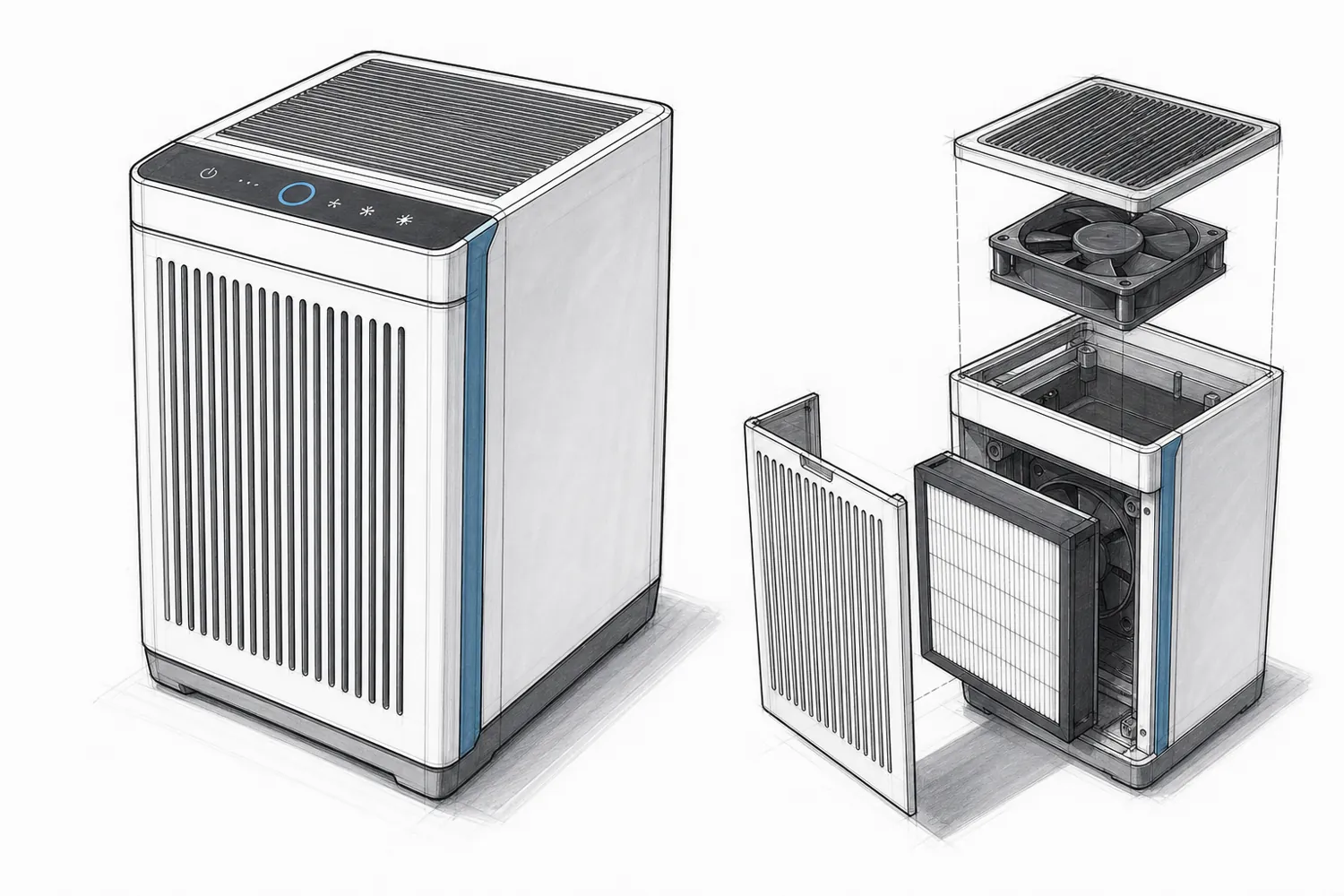

Concept sketch of the purifier with its front grille lifted off, the HEPA cartridge, fan and top grille drawn apart
Concept sketch · stands in for the client's own sketch · AI generated

Links in the request

Product names are their owners' trademarks and are used only to describe size or parts.

Highlighted numbers came with the request; they are the values we would design to.

What we considered

No.ConsiderationHow it is checked
01Filter out the front, no tools

The cartridge slides out toward the user through a front door with room to grip it.

Clear zone in the removal direction; the cartridge fits its bay with clearance.
02A grille fingers can't get through

Top grille openings sized so a 12 mm test finger can't reach the fan blades.

Grille opening size and depth to the blade tips.
03A fan mount that doesn't hum

Bosses sized for rubber isolation bushes between the fan and the housing.

Boss positions against the fan's hole pattern; wall thickness around them.
04EU rules on the brief card

The region gate adds IEC 60335 items to the brief card so they are reviewed, not assumed.

Listed on the brief card with their source.

The question we would ask you

Magnetic front door or a latch?

Magnets need pockets and change the door's wall thickness; a latch needs a flex arm that must survive years of filter changes.

What we do not claim

  • CADR or noise figures
  • CE conformity

Sample CAD and the checks we ran

Sample designWritten by Anamor as a hand-built CAD sample for this page, drawn to the concept sketch. It is not our engine's output and it has not been built or tested physically.

P4-ASM

  1. 1Housing
  2. 2Plinth
  3. 3Driver board 230 V / 12 V
  4. 4Touch board
  5. 5Fan 120 mm
  6. 6Isolation bush×4
  7. 7HEPA H13 media
  8. 8Filter frame
  9. 9Accent trim×2
  10. 10Front grille
  11. 11Control glass
  12. 12Status light ring
  13. 13Top grille
Render of the Compact HEPA air purifier sample from its CAD model
Render · from the sample CAD
Exploded view of the Compact HEPA air purifier sample
Exploded view
Assembly video

Parts list · 17 parts

No.PartQty
1Housing1
2Plinth1
3Driver board 230 V / 12 V1
4Touch board1
5Fan 120 mm1
6Isolation bush4
7HEPA H13 media1
8Filter frame1
9Accent trim2
10Front grille1
11Control glass1
12Status light ring1
13Top grille1

What we measured on the sample

Clearance at rest
0.50 mm smallest gapEvery pair of the 17 parts measured at rest (136 pairs); the value is the smallest gap found.
Overall size
240 × 230 × 410 mmAssembled, x × y × z.
Front grille
lifts offHeld by its magnet pegs, it pulls straight off forward with nothing in the way, opening the filter bay; pushed home, its pegs stop on the front wall. Needs 120 mm: met.
No air past the filter
sealedThe frame wall's window sits inside the filter's 8 mm border, so all air goes through the media.
Finger guard
3.5 mm slotsTop grille slots are far under the 12 mm test finger; the fan sits 24 mm below the grille.

Not done yet

  • Dimensioned part drawings
  • Process rule inspection (wall, draft, bend and hole rules)
  • A physical build
