1U edge AI inference server

A passive data-center GPU cooled inside a 350 mm deep 1U box.

Silver 1U server with four front fans in a small wall-mounted rack between a network switch and a patch panel
Process
Sheet metal
Quantity
20
Region
US
Environment
19-inch rack, 350 mm deep
Concept image, not to scale

Example brief · not client workWe wrote this brief ourselves; it is not client work. The design below is a hand-built CAD sample drawn to the concept sketch: it is not our engine's output, and it has not been built or tested physically.

The request, as a client would send it

We run computer-vision models in retail back rooms where there's only a shallow wall-mount rack. We need a 1U short-depth chassis in sheet steel, 20 units to start. Inside: - a Mini-ITX board (170 x 170 mm) - an NVIDIA L4 GPU: half-height, half-length, single slot, 168.5 x 68.9 mm, 72 W and passively cooled. It has no fan, so the chassis has to push air through it. It sits on a riser, lying flat. - a flex-ATX power supply, 150 x 81.5 x 40.5 mm (we use the SilverStone FX350-G) - two 2.5" SSDs Maximum depth is 350 mm because the racks are shallow. Front-to-back airflow from a row of 40 mm fans. Front: power button and two USB ports. Rear: IEC inlet and the I/O shield. Supermicro's SC505-203B is close, but its slot and power supply layout don't fit the L4 and our PSU. Our rough layout sketch is attached. We need flat patterns and a hardware list for our local sheet-metal shop.

Attached by the client

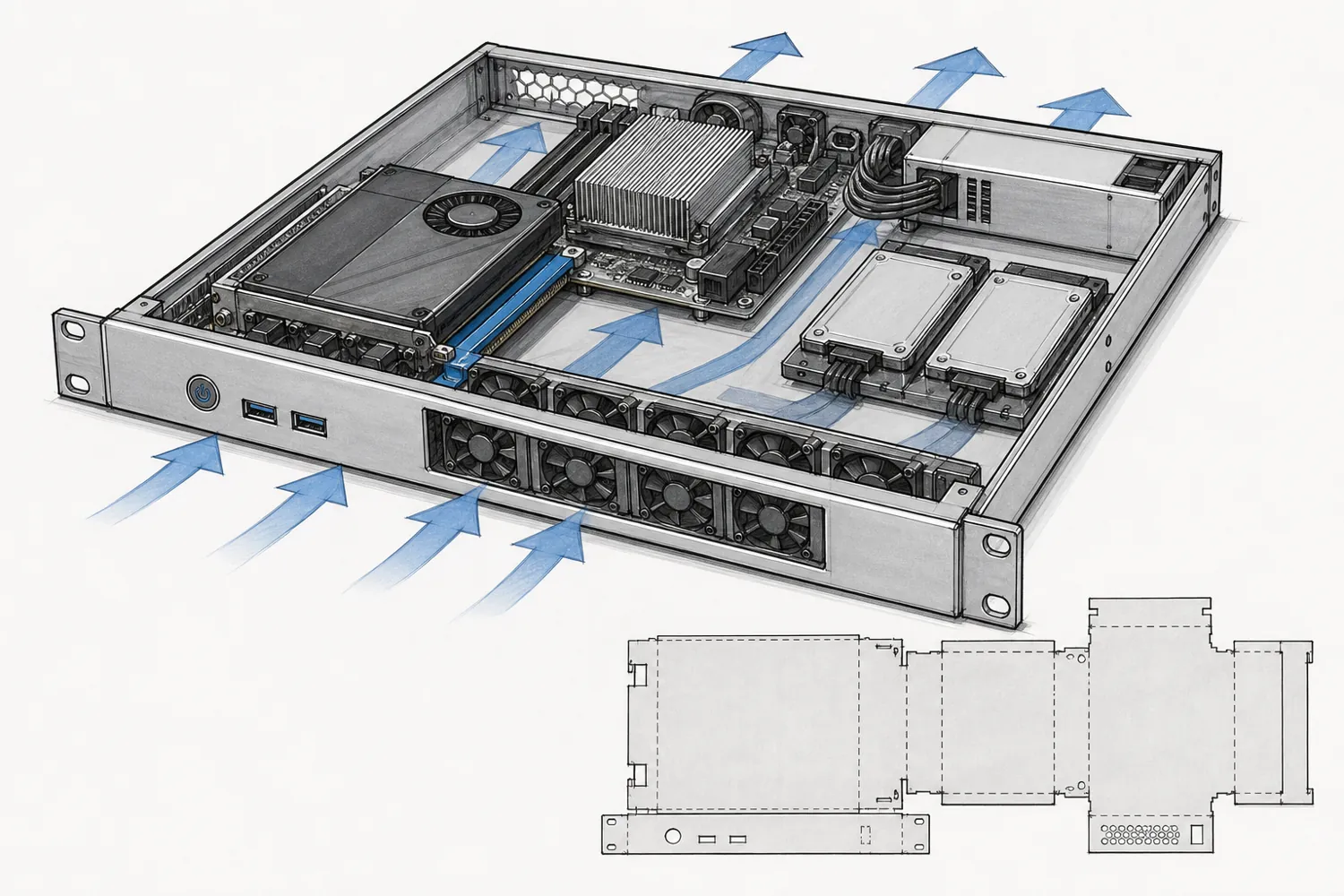

Concept sketch of the 1U chassis with its lid off, showing the board, GPU on a riser, power supply and airflow arrows
Concept sketch · stands in for the client's own sketch · AI generated

Links in the request

Product names are their owners' trademarks and are used only to describe size or parts.

Highlighted numbers came with the request; they are the values we would design to.

What we considered

No.ConsiderationHow it is checked
01Air forced through a fanless GPU

A duct from the fan row runs the full length of the GPU so its 72 W leaves through the rear, not into the board.

Clear path from the fans through the GPU heatsink to the rear vents.
02Everything inside 350 mm

Board, riser GPU, power supply and SSDs placed without collisions inside the depth limit.

No two parts share space; overall depth.
03Rack dimensions from EIA-310

Panel width 482.6 mm, height 44.45 mm, ear hole spacing 465.1 mm.

Outer size and ear holes against EIA-310.
04Ready for a sheet-metal shop

Bend radii, reliefs, hole-to-bend distances and PEM nuts checked on the built part; flat patterns and an assembly drawing delivered.

Sheet-metal rules on the built geometry; flat patterns exported.

The question we would ask you

Fixed rack ears or slide rails?

Slide rails need side mounting holes and a few millimeters of width, and change how the lid is serviced.

What we do not claim

  • Thermal analysis or GPU temperatures
  • Performance or noise

Sample CAD and the checks we ran

Sample designWritten by Anamor as a hand-built CAD sample for this page, drawn to the concept sketch. It is not our engine's output and it has not been built or tested physically.

P7-ASM

  1. 1Base tray
  2. 2Mini-ITX board
  3. 3I/O shield
  4. 4PCIe riser
  5. 5CPU heatsink
  6. 6NVIDIA L4 GPU
  7. 7GPU air duct
  8. 8Flex-ATX power supply
  9. 924-pin power cable
  10. 10SSD bracket
  11. 112.5-inch SSD×2
  12. 1240 mm fan×4
  13. 13Fan bracket
  14. 14Front panel with rack ears
  15. 15Front USB board
  16. 16Power button
  17. 17Status LEDs
  18. 18Lid
Render of the 1U edge AI inference server sample from its CAD model
Render · from the sample CAD
Exploded view of the 1U edge AI inference server sample
Exploded view
Assembly video

Parts list · 22 parts

No.PartQty
1Base tray1
2Mini-ITX board1
3I/O shield1
4PCIe riser1
5CPU heatsink1
6NVIDIA L4 GPU1
7GPU air duct1
8Flex-ATX power supply1
924-pin power cable1
10SSD bracket1
112.5-inch SSD2
1240 mm fan4
13Fan bracket1
14Front panel with rack ears1
15Front USB board1
16Power button1
17Status LEDs1
18Lid1

What we measured on the sample

Clearance at rest
0.50 mm smallest gapEvery pair of the 22 parts measured at rest (231 pairs); the value is the smallest gap found.
Size against the request
482.6 × 343.5 × 44.45 mmRequest: 1U (44.45 mm), 19-inch rack (482.6 mm over the ears), at most 350 mm deep. Inside it.
Lid
slides offSlides 350 mm back, fully off the tray; pushed forward, it stops under the front panel's return. Needs 335 mm: met.

Not done yet

  • Dimensioned part drawings
  • Process rule inspection (wall, draft, bend and hole rules)
  • A physical build
